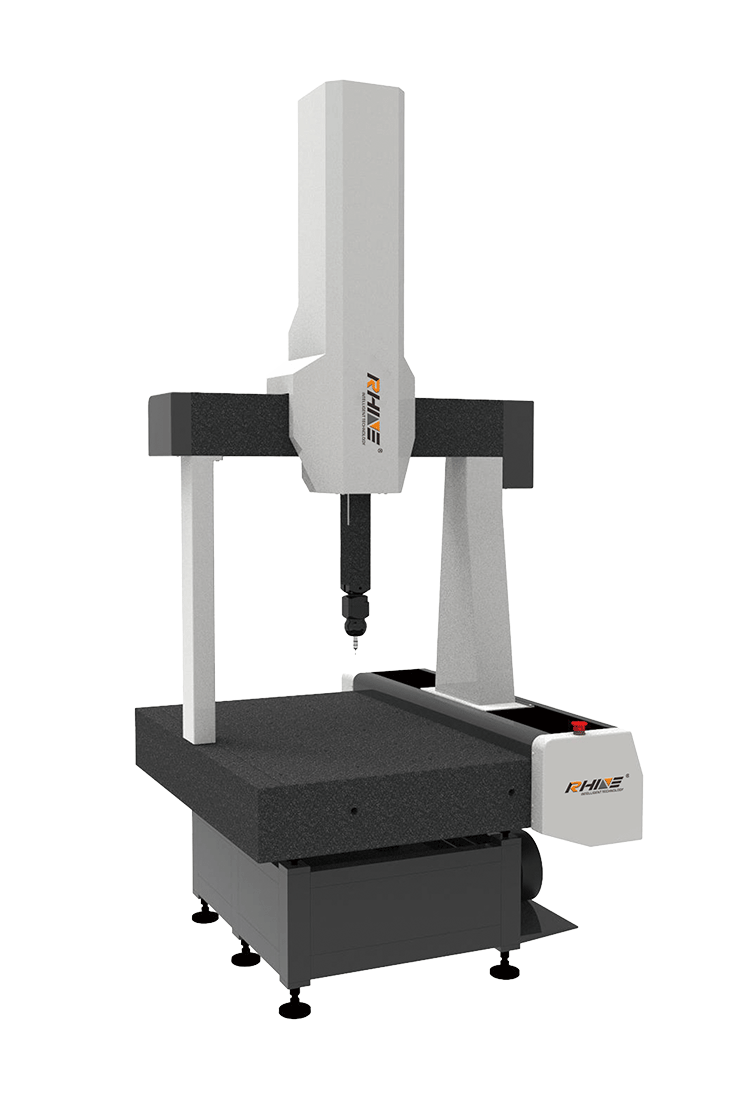

High precision moving bridge CMM

MPEe: from 0.9 μm







The mobile high-precision coordinate measuring machine can be used in various fields, suchas precision hardware, molds, digital 3C and other industries, with the highest measurementaccuracy of 0.9 u m. The design of high-rigidity air-floating guide rail surrounded on all sidesensures the best dynamic performance, which is the perfect combination of high-efficiencymeasurement and precision measurement.

Light weight and high dynamic performance:

After the optimization design of the classic mobilebridge structure by finite element method, theperfect upgrade of good rigidity and light weightis realized, and the dynamic rigidity of CMM isimproved.

Convenient workpiece loading and unloading:

Ergonomic open structure workbench design makesthe loading and unloading of workpieces moreconvenient.

Granite material, inherent high stability:

Considering the high stability and high toleranceof the measuring machine, Lihe Precision chooseshard and dense granite as the material for makingthe workbench and Y axis, In addition, the X-axisand Z-axis are also optimized with high rigidity, andyou can choose from precision ceramic or granitebeams.

Stable air-floating guide rail design to achievehigh-precision measurement:

The design of high rigid air-floating guide railsurrounded on all sides ensures the measurementaccuracy and long-term stability.

High-performance DC motor with sensitivetransmission:

High-performance DC servo motor drive andtoothless meshing drive are adopted to ensurethe agility, accuracyand stability of the drive.

Model Measuring range Accuracy CZ10T+CF20 Accuracy PH10M+SP25 Size Weight
X axis Y axis Z axis MPEe MPEp MPEe MPEp
Mercury 565 500 600 500 1.6+L/400 1.8 0.9+L/400 1.0 1420*1390*2782 2600
Mercury 686 600 800 600 1.7+L/400 1.9 1.0+L/400 1.2 1520*15902982 3000
Mercury 6106 600 1000 600 1.7+l/400 1.9 1.0+L/400 1.2 1520*1790*2982 3100
Mercury 6126 600 1200 600 1.7+l/400 1.9 1.0+L/400 1.2 1520*1990*2982 3200
Mercury 6156 600 1500 600 1.7+l/400 1.9 1.0+L/400 1.2 1520*2290*2982 3300
Mercury 8106 800 1000 600 1.8+l/400 2.0 1.3+L/400 1.5 1720*1790*2982 3200
Mercury 8126 800 1200 600 1.8+l/400 2.0 1.3+L/400 1.5 1720*1990*2982 3300
Mercury 8156 800 1500 600 1.8+l/400 2.0 1.3+L/400 1.5 1720*2290*2982 3400
Mercury 8206 800 2000 600 1.8+l/400 2.0 1.3+L/400 1.5 1720*2790*2982 3600
Mercury 10128 1000 1500 800 2.0+l/400 2.2 1.5+L/400 1.7 1920*2200*3200 3400
Mercury 10158 1000 1500 800 2.0+l/400 2.2 1.5+L/400 1.7 1920*2500*3200 3500
Mercury 10208 1000 2000 800 2.0+l/400 2.2 1.5+L/400 1.7 1920*3000*3200 3700
Mercury 10258 1000 2500 800 2.0+l/400 2.2 1.5+L/400 1.7 1920*3500*3200 3700
Mercury 101210 1000 1200 1000 2.3+l/400 2.5 2.0+L/400 2.2 1920*2200*3600 3500
Mercury 101510 1000 1500 1000 2.3+l/400 2.5 2.0+L/400 2.2 1920*2400*3600 3600
Mercury 102010 1000 2000 1000 2.3+l/400 2.5 2.0+L/400 2.2 1920*3000*3600 3800
Mercury 102510 1000 2500 1000 2.3+l/400 2.5 2.0+L/400 2.2 1920*3500*3600 4000
Mercury 121510 1200 1500 1000 2.5+l/400 2.7 2.0+L/400 2.4 2120*2500*3600 3700
Mercury 122010 1200 2000 1000 2.5+l/400 2.7 2.0+L/400 2.4 2120*3000*3600 3900
Mercury 122510 1200 2500 1000 2.5+l/400 2.7 2.0+L/400 2.4 2120*3500*3600 4100
Mercury 123010 1200 3000 1000 2.5+l/400 2.7 2.0+L/400 2.4 2120*4000*3600 4300
Mercury 123010 1200 3000 1000 2.5+l/400 2.7 2.0+L/400 2.4 2120*4000*3600 4300
Mercury 152010 1500 2000 1000 3.0+l/400 3.2 2.5+L/400 2.7 2420*3000*3600 4000
Mercury 152510 1500 2500 1000 3.0+l/400 3.7 2.5+L/400 2.7 2420*3500*3600 4200
Mercury 153010 1500 3000 1000 3.0+l/400 3.7 2.5+L/400 2.7 2420*4000*3600 4400
Mercury 154010 1500 4000 1000 3.0+l/400 3.7 2.5+L/400 2.7 2420*5000*3600 4400
Mercury 152012 1500 2000 1200 4.0+l/400 4.2 3.0+L/400 3.2 2420*3000*4000 4100
Mercury 152512 1500 2500 1200 4.0+l/400 4.2 3.0+L/400 3.2 2420*3500*4000 4300
Mercury 153012 1500 3000 1200 4.0+l/400 4.2 3.0+L/400 3.2 2420*4000*4000 4500
Mercury 154012 1500 4000 1200 4.0+l/400 4.2 3.0+L/400 3.2 2420*5000*4000 4900

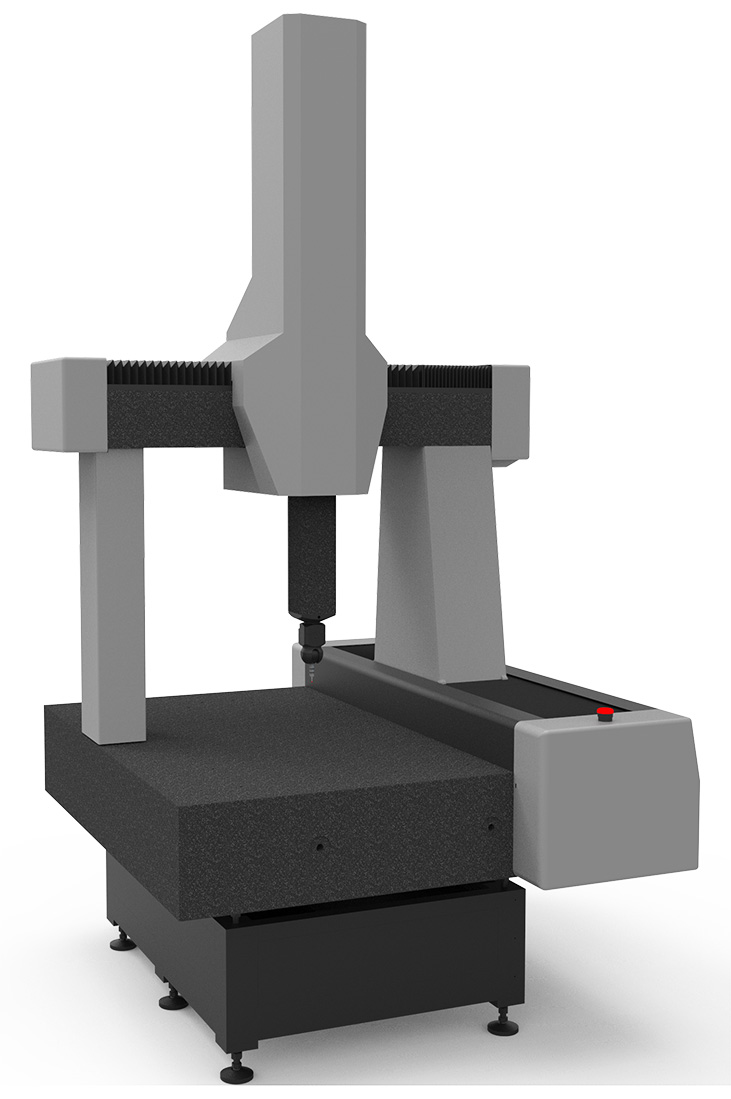

Fixed bridge ultra-high precision CMM MPEe: from 0.6 μm
