CZ20i

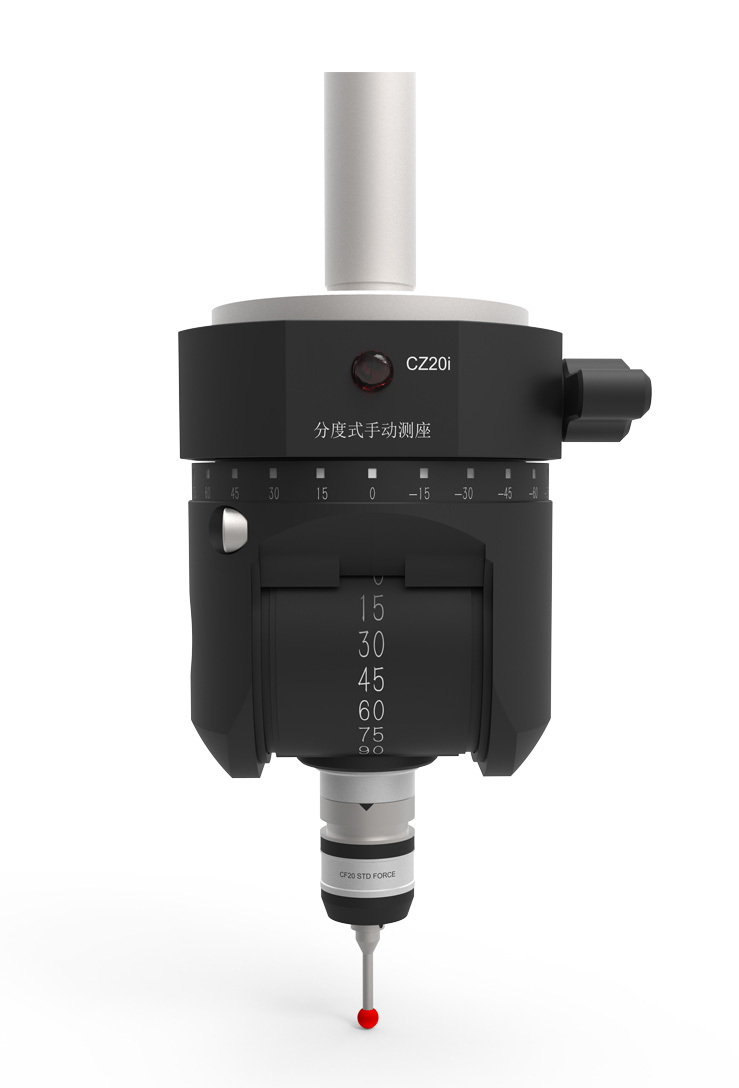

CZ20i semi-automatic measuring base can realizethe rotation and positioning of pitch and yaw axes.and can be used interchangeably with RenishawMH20i measuring base. Axis a and axis b are inincrements of 15*, which can realize positioning in168 repeatable positions in space. It can directly loadprobe or CF20 module, and is compatible withRenishaw TP20 module.
| Position repeatability | 1.5μm(2σ) | ||||
| Positioning angle | Axis A indexing: 0° 90° at 15° intervals Axis B indexing: ±180° at 15° intervals |
||||
| Compatible probe types | CF20 | ||||
| Size | L62mm W 60mm |
||||
| Weight | 300g | ||||
