CZ10T mini







CZ10T mini indexing type automatic measuring seatz-direction is short, so that the measurement spaceis greatly increased; Automatic rotating probe canbe realized to quickly and accurately locate themeasuring position required by parts. Compatiblewith all Renishaw probe lower module and extensionrod, probe needle and module switching system,and compatible with MACC3000 controller.



Position repeatability 0.5μm
Positioning angle Axis A0°~105
8 positions with 15°
Axis B 0°~360°
24positions with 15°.
Compatible probe types CF20
Size L65mm
W 65mm
Weight 610 ±10g

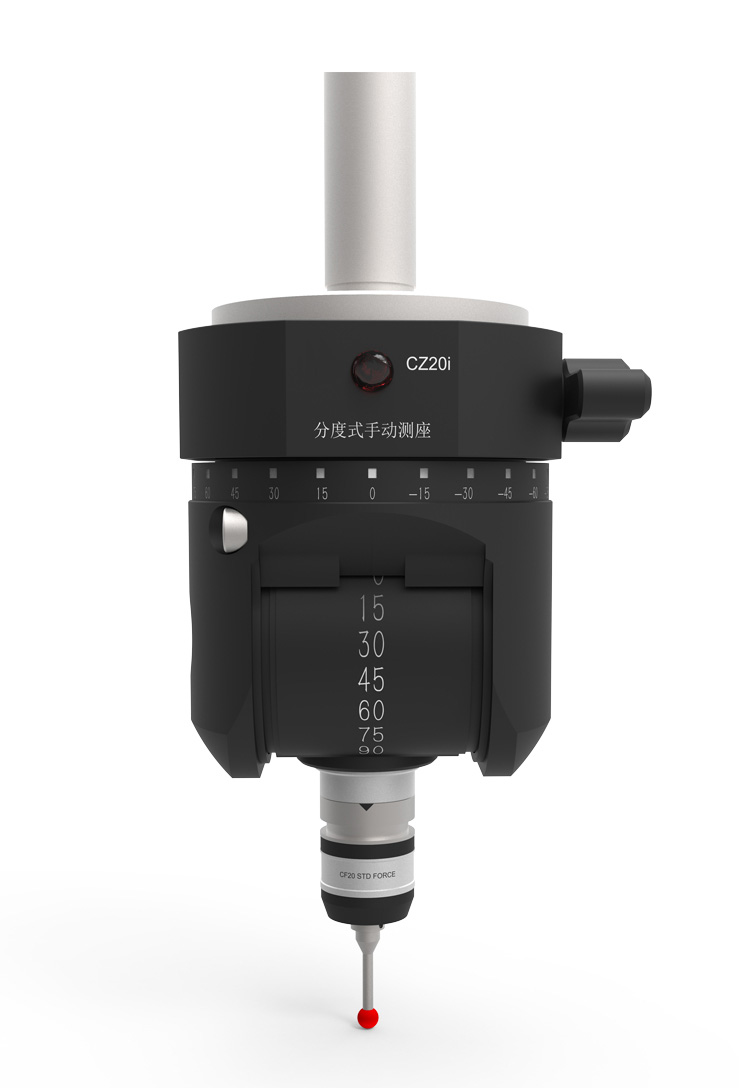

CZ20i
