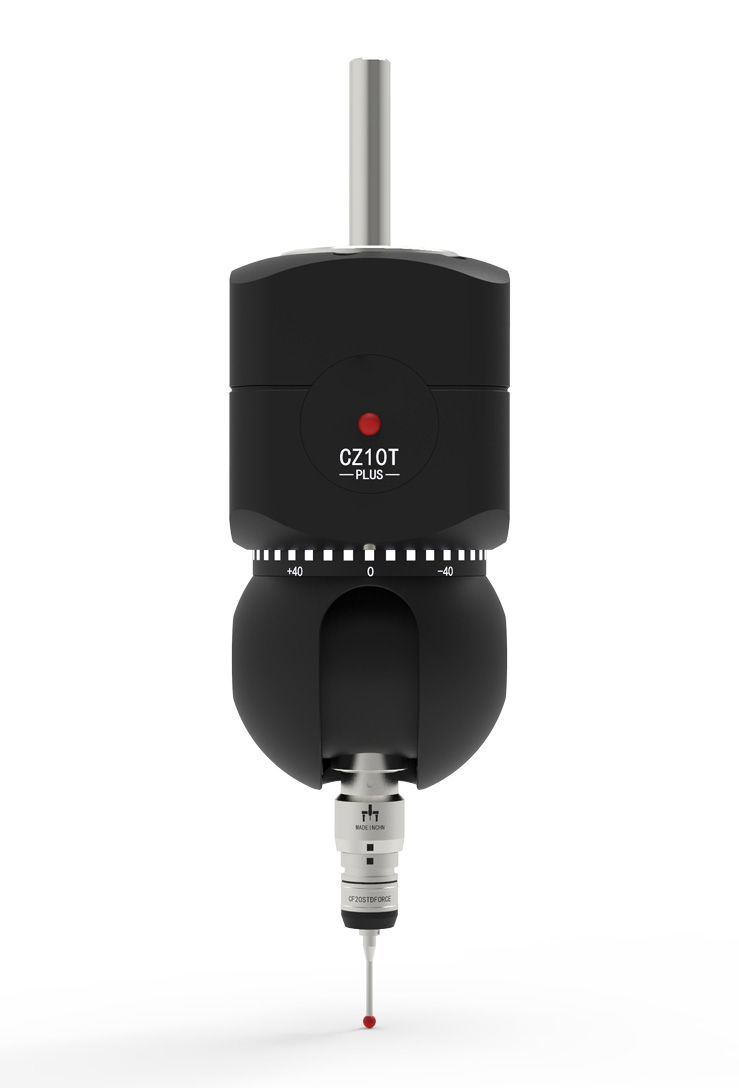

CZ10T-PLUS
The CZ10T PLUS indexing automatic measuring seadcan quickly locate 1584 measuring angles,it coveringalmost all measuring angles, suitable for measuringcomplex and precise parts. CZ10T PLUS is compatiblewith CF20, Renishaw M8 thread probe and extensionrod, MACC controller.
| Position repeatability | 0.5μm(2σ) | ||||
| Positioning angle | Axis A0°~105 22 positions with 5° Axis B0°~360° 72 positions with 5°. |
||||
| Compatible probe types | CF20 | ||||
| Size | L62mm W 62mm |
||||
| Weight | 750 ±10g | ||||
