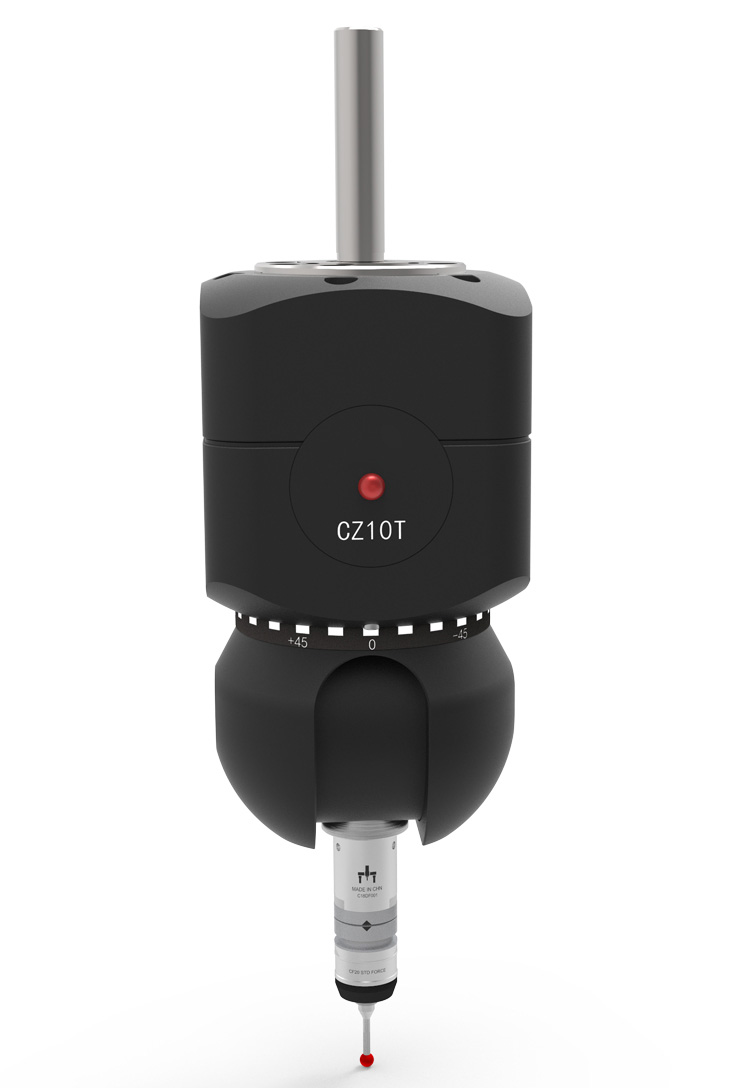

CZ10T
CZ10T indexing automatic measuring seat can realize therotation and positioning of pitch and yaw axes, and iscompatible with CF20 trigger probe of our company. As anew generation of high precision and high efficiency probeused in the measuring base, it can realize the rapid andprecise measurement of complex parts without too muchhuman intervention.
| Weight | 725g | ||||
| Installation mode | Long handle | ||||
| Probe installation | M8 thread | ||||
| Position repeatability accuracy | 0.5 μm | ||||
| Cycle time (360°) | 4.5s | ||||
| Angle | Axis A 0°- 105°,15 positions with 7.5° Axis B ± 180,48 positions with 7.5° | ||||
| Total Angle degree | 720 | ||||
| Maximum driving force output torque | 0.34Nm | ||||
| Maximum extension bar | 200mm (80 g) | ||||
| Maximum load | 300 g (Measured) | ||||
