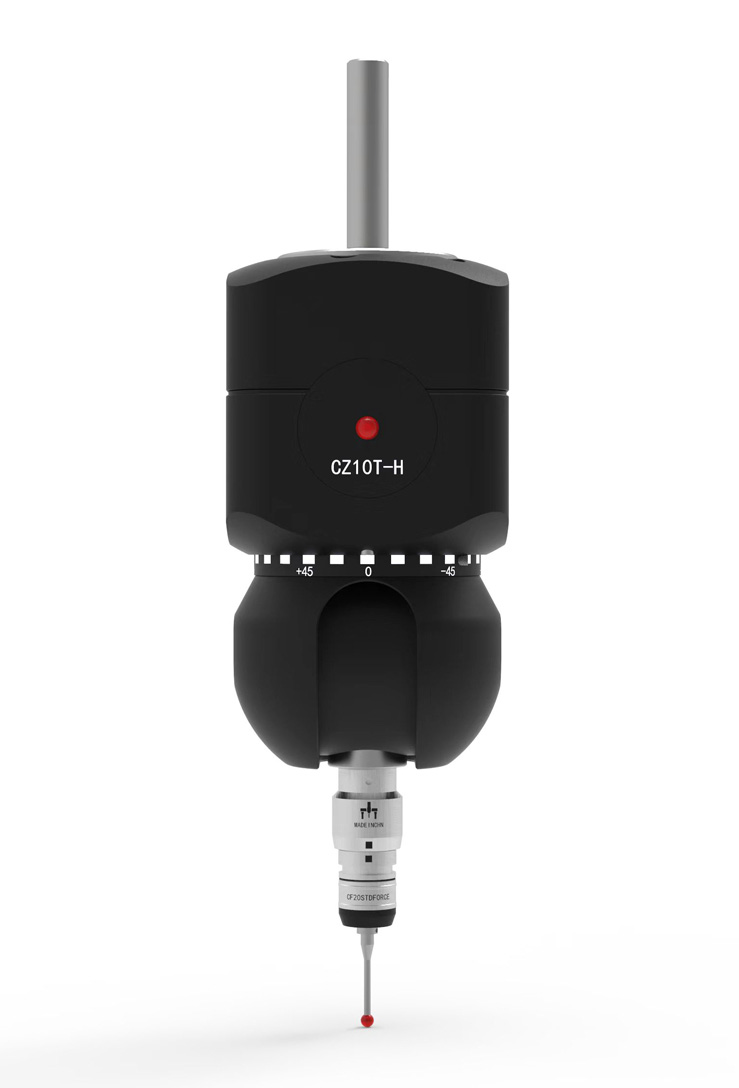

CZ10T-H
CZ10T-H indexing automatic measuring seat can beequipped with a long extension rod and CF20 probe, witha maximum load of 600 grams. The powerful driving forcemakes it flexible to rotate probe and probe needle in theapplication scenario of large load.
| Weight | 725g | ||||
| Installation mode | Long handle | ||||
| Probe installation | M8 thread | ||||
| Position repeatability accuracy | 0.5 μm | ||||
| Cycle time (360°) | 7.5 s (theory) | ||||
| Angle | Axis A 0°- 105°,15 positions with 7.5° Axis B ± 180,48 positions with 7.5° | ||||
| Total Angle degree | 720 | ||||
| Maximum driving force output torque | 0.63Nm | ||||
| Maximum extension bar | 400mm,Use PEL4 Extension(φ11-33gΦ) | ||||
| Maximum load | 600g (Measured) | ||||
