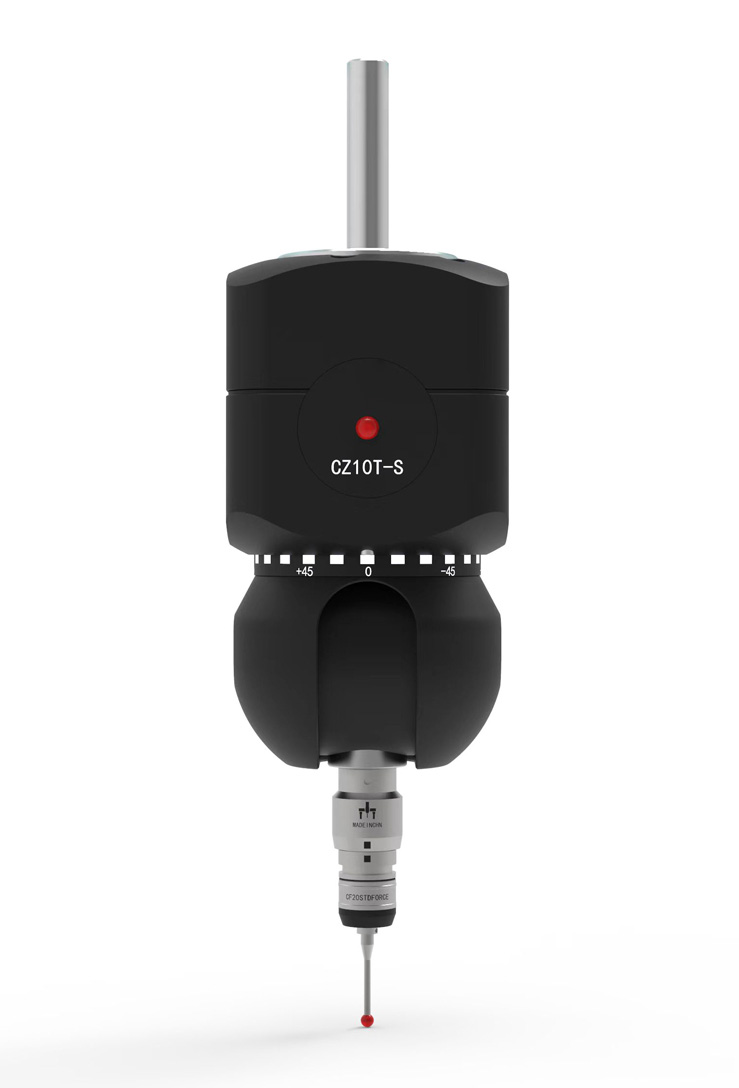

CZ10T-S
CZ10T-S indexing automatic measuring seat is twice asfast as a conventional measuring base, enabling quickpositioning and improving your measuring efficiency. Itis very suitable for large-scale and high precisionmeasurement operations, such as 3C digital, precisionhardware and other industries.
| Weight | 725g | ||||
| Installation mode | Long handle | ||||
| Probe installation | M8 thread | ||||
| Position repeatability accuracy | 0.5 μm | ||||
| Cycle time (360°) | 2.2 s (Measured) | ||||
| Angle | Axis A 0°- 105°,15 positions with 7.5° Axis B ± 180,48 positions with 7.5° | ||||
| Total Angle degree | 720 | ||||
| Maximum driving force output torque | 0.18Nm | ||||
| Maximum extension bar | 100mm | ||||
| Maximum load | 80g (Measured) | ||||
